DOUBLE PANEL RETAINER

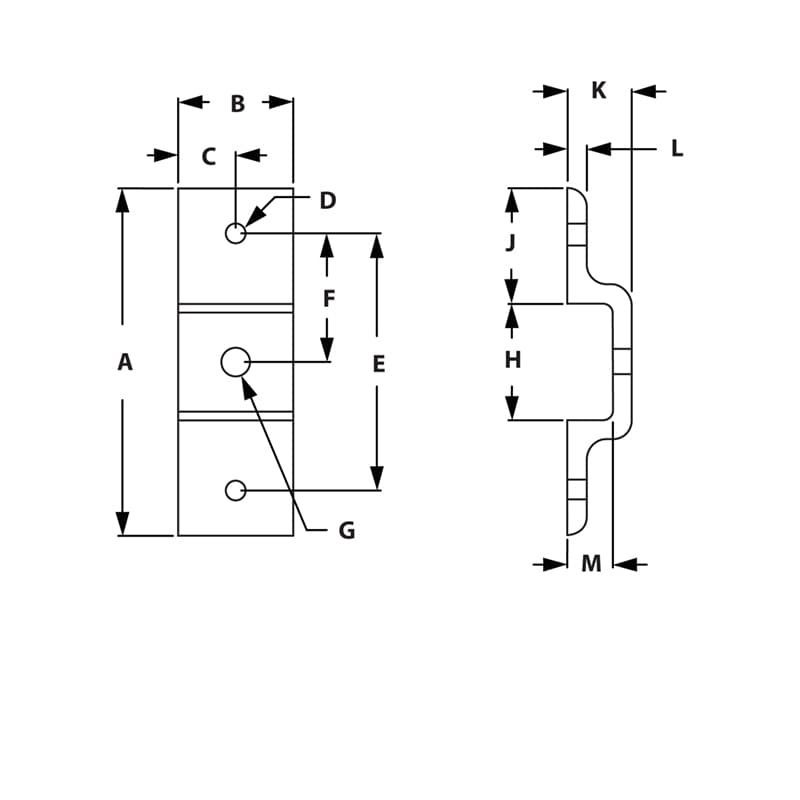

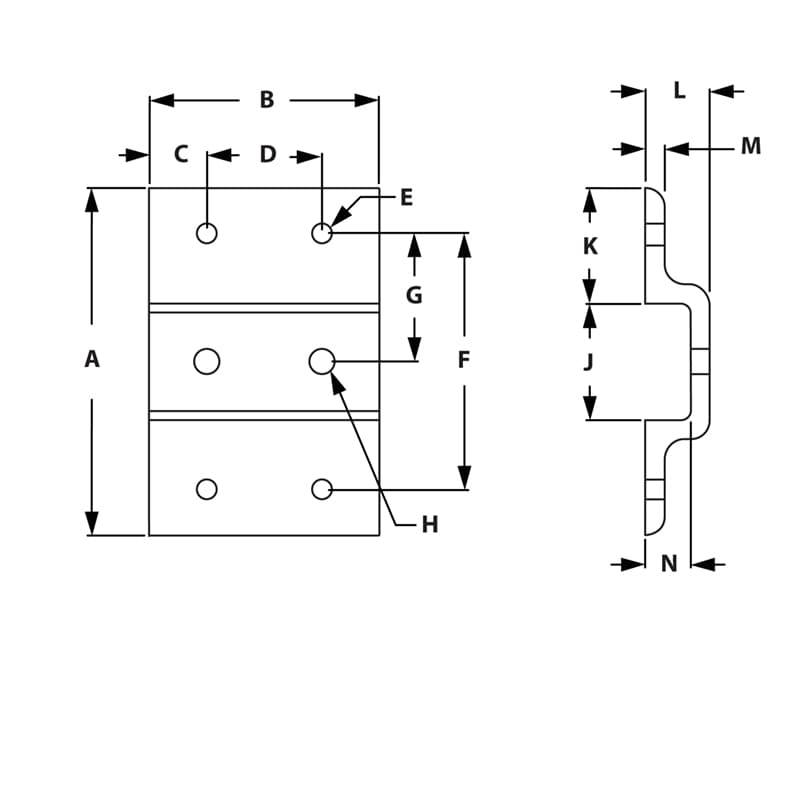

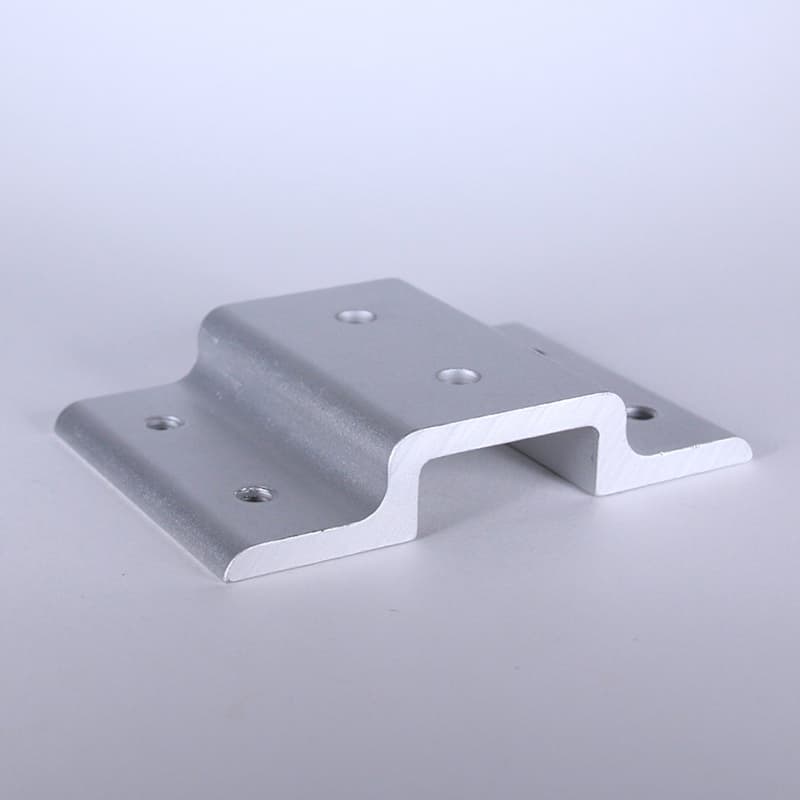

Image of Double Panel Retainer Drawing of Draw-Double Panel Retainer Image of Double Panel Retainer Wide Drawing of Draw-Double Panel Retainer Wide

Strongest way to retain panels, Simplifies panel installation and removal, Drilling panel required

SELECT PRODUCT VARIATION BELOW TO ADD TO RFQ

Product Variations

Item # Type Series Recommended Fastener Ext 1 # Recommended Fastener Ext. 1 Qty Recommended Fastener Panel 1 # Recommended Fastener Panel Qty A B C D E F G H J K L M N List Price Qty. Add to RFQ
655343

Single
10
651130
1
651169
2
3.021"
1.000"
.500"
1/4-20
2.237"
1.118"
.257"
1.021"
1.000"
.563"
.188"
.375"
6.684
655344

Wide
10
651130
2
651169
4
3.021"
2.000"
.500"
1.000"
1/4-20
2.237"
1.118"
.257"
1.021"
1.000"
.563"
.188"
.375"
9.437
655345

Single
15
651129
1
651129
2
4.523"
1.500"
.750"
5/16-18
3.335"
1.666"
.328"
1.523"
1.500"
.840"
.250"
.590"
11.984
655346

Wide
15
651129
2
651129
4
4.523"
3.000"
.750"
1.500"
5/16-18
3.335"
1.666"
.328"
1.523"
1.500"
.840"
.250"
.590"
10.146
