ECONOMY DOUBLE FLANGE SINGLE WIDE LINEAR BEARING - SHORT

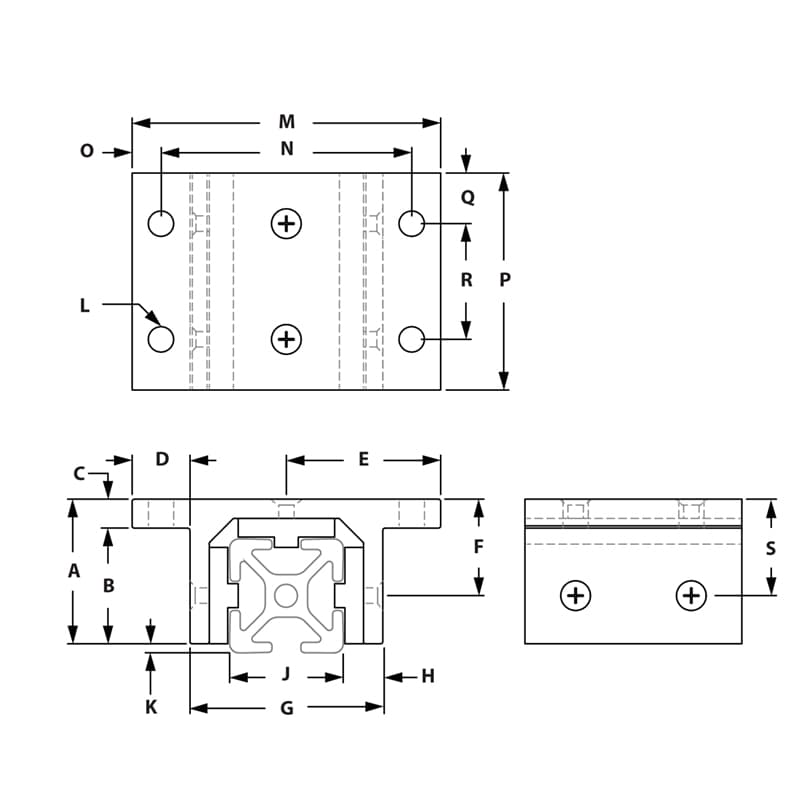

Image of Econ Double Flange Single Wide Short Bearing Image of Draw-Econ Double Flange Single Wide Short Bearing

This short double flange bearing adds linear motion to any application. The bearing pads are durable and can endure repetitive cycles and start and stop motion. All bearings are designed for compression loads only and not for hanging loads.

SELECT PRODUCT VARIATION BELOW TO ADD TO RFQ

Product Variations

Item # Series Recommended Fastener Recommended Fastener Qty A B C D E F G H J K L M N O P Q R S List Price Qty. Add to RFQ
657152

10
651236
4
1.218"
.906"
.312"
.656"
1.468"
.812"
1.625"
.312"
1.000"
.094"
2.937"
2.937"
2.250"
.343"
1.875"
.438"
1.000"
.812"
50.606
657148

15
651205
4
1.875"
1.500"
.375"
.750"
1.250"
1.235"
2.500"
.500"
1.500"
.125"
4.000"
4.000"
3.250"
.375"
2.812"
.656"
1.500"
1.245"
83.917
