Double End Fastener With Bolt

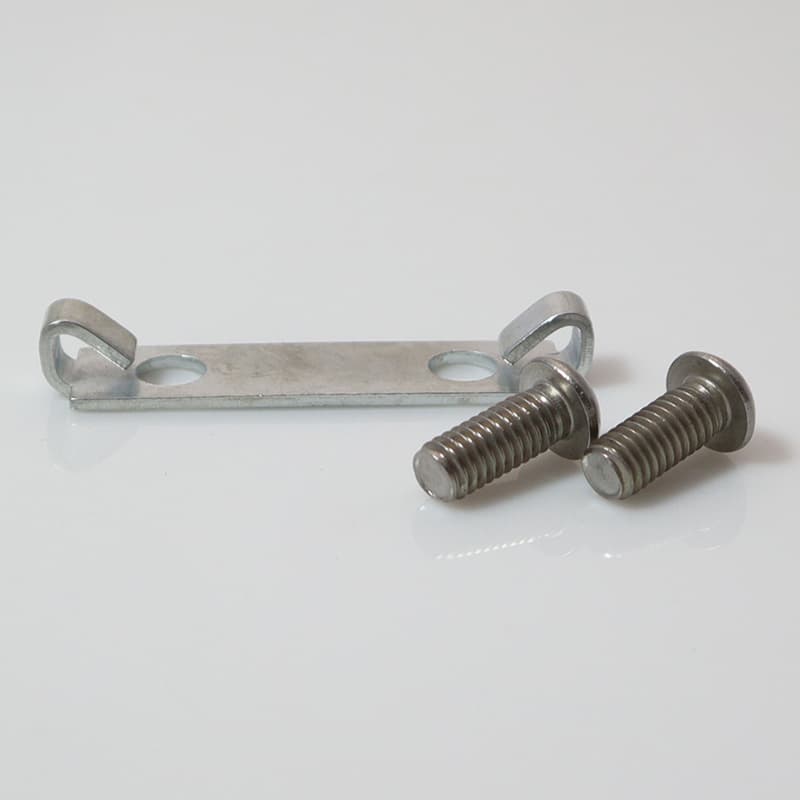

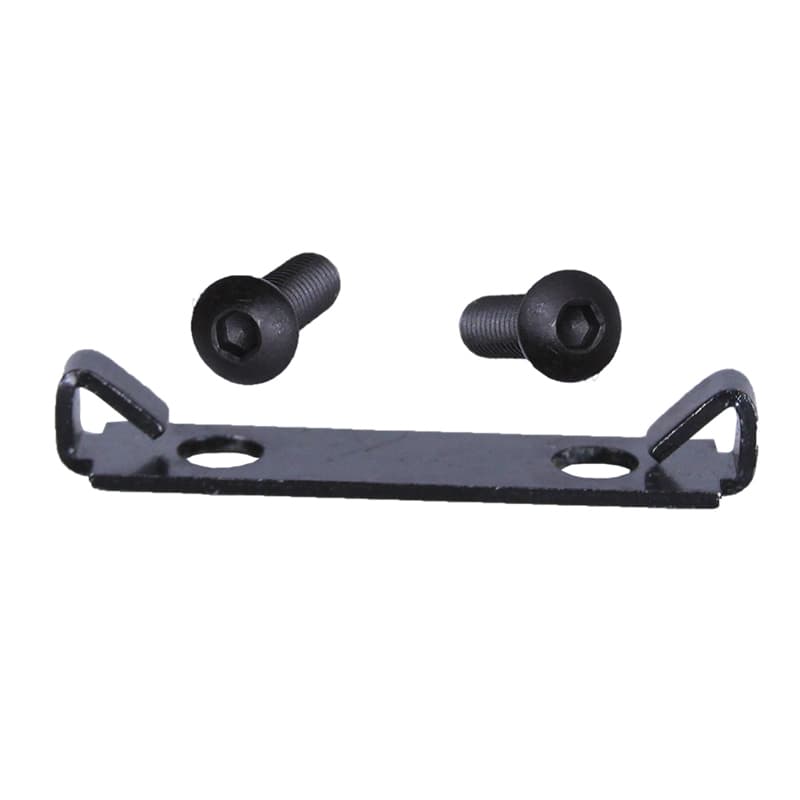

Image of Double End Fastener bolt Bright Image of Double End Fastener bolt SS Image of Double End Fastener bolt black

Provides a hidden fastener when connecting extrusions at 90 degrees, Mating extrusions glide over end fastener, Tapping service required in the extrusion base end and access hole in the mating extrusion, Prevents mating extrusion from rotating

SELECT PRODUCT VARIATION BELOW TO ADD TO RFQ

Product Variations

Item # Finish Series Thread Bolt Length Bolt Item # Fastener Item # Stainless Steel Combination A B C D E F G H J List Price Qty. Add to RFQ
651428

Bright Zinc
10
M6
25 mm
651341
651329
.280"
1.000"
1.630"
1.880"
.430"
.250"
.340"
.790"
M6 x 25mm BHSCS
4.005
651429

Bright Zinc
15
M8
25 mm
651351
651330
.350"
1.500"
2.500"
2.800"
.640"
.310"
.450"
.980"
M8 x 25mm BHSCS
10.583
651327

Stainless Steel
10
1/4-20
3/4
651300
651329
x
.280"
1.000"
1.630"
1.880"
.430"
.250"
.340"
.750"
SS 1/4-20 x 3/4 BHSCS
4.005
651328

Stainless Steel
15
5/16-18
3/4
651253
651330
x
.350"
1.500"
2.500"
2.800"
.640"
.310"
.450"
.750"
SS 5/16-18 x 3/4 BHSCS
11.192
651137

Black Zinc
10
1/4-20
3/4
651025
651139
.280"
1.000"
1.630"
1.880"
.430"
.250"
.340"
.750"
1/4-20 x 3/4 BHSCS
7.522
651138

Black Zinc
15
5/16-18
3/4
651053
651140
.350"
1.500"
2.500"
2.800"
.640"
.310"
.450"
.750"
5/16-18 x 3/4 BHSCS
7.235
