Standard End Fastener With Bolt

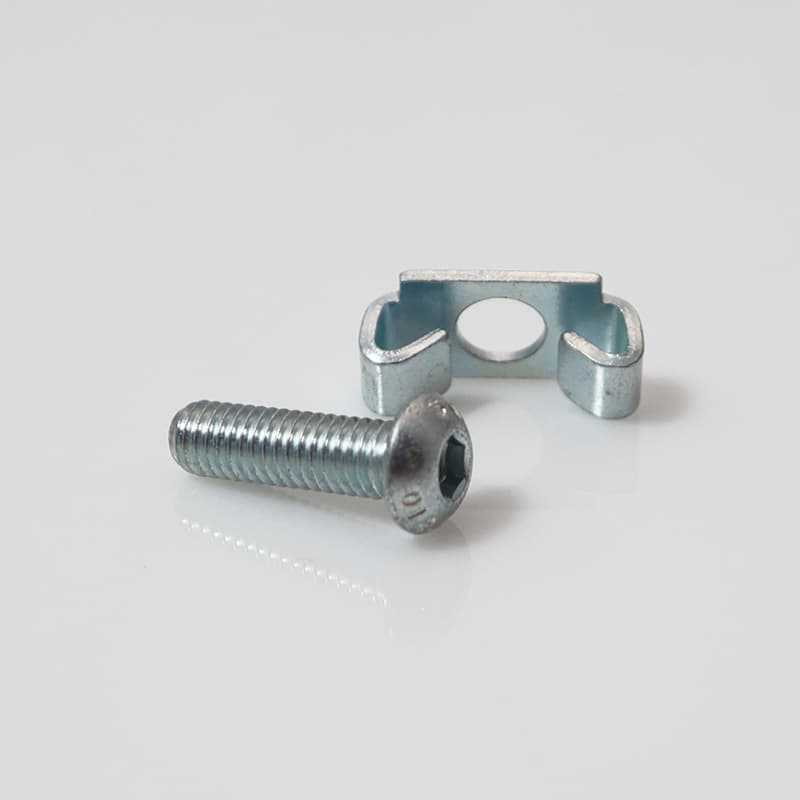

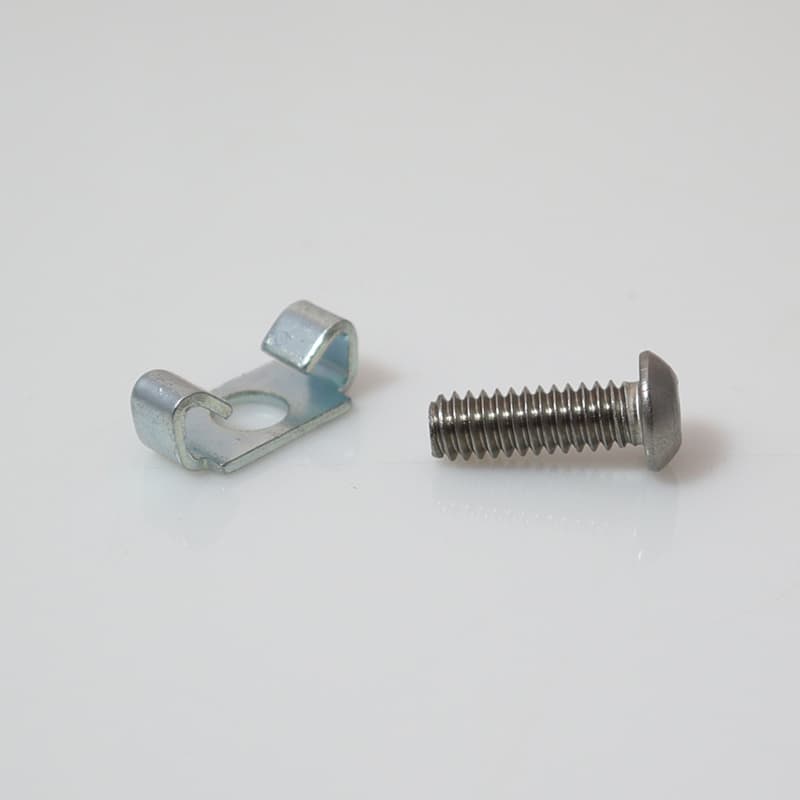

Image of End Fastener W-bolt Black Image of End Fastener w-Bolt Image of End Fastener W-bolt SS Image of End Fastener W-bolt Bright 15 Image of End Fastener W-bolt Bright

Provides a hidden fastener when connecting extrusions at 90 degrees, Mating extrusions glide over end fastener, Tapping service required in the extrusion base end and access hole in the mating extrusion, Prevents mating extrusion from rotating

SELECT PRODUCT VARIATION BELOW TO ADD TO RFQ

Product Variations

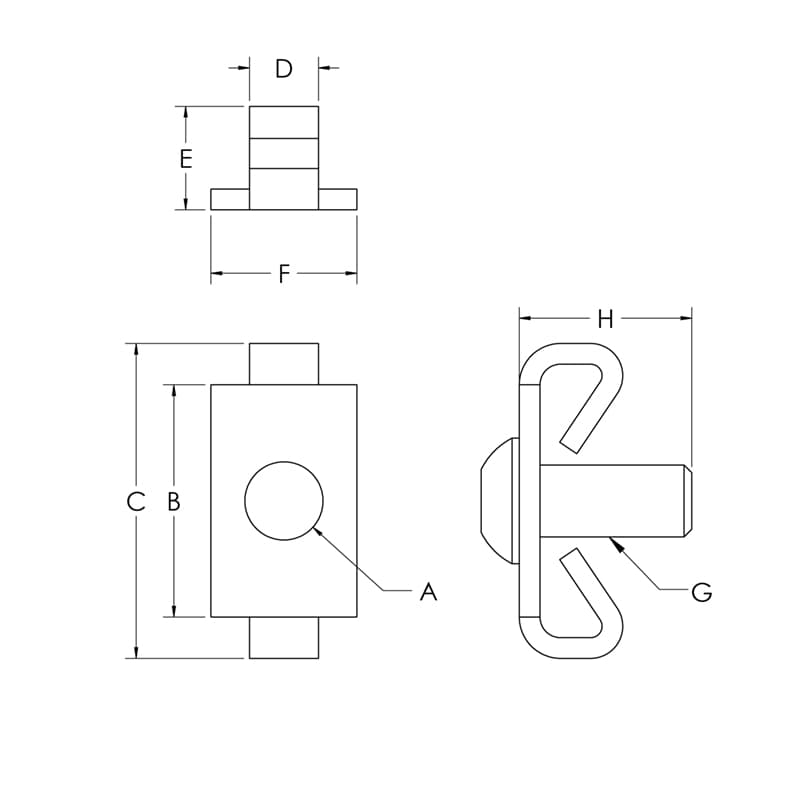

Item # Finish Series Thread Bolt Length Bolt Item # Fastener Item # Stainless Steel Combination A B C D E F G H List Price Qty. Add to RFQ
651161

Black Zinc
15
5/16-18
3/4
651053
651160
.340"
1.010"
1.370"
.300"
.450"
.640"
5/16-18 x 3/4 BHSCS
.750"
2.184
651162

Black Zinc
10
1/4-20
3/4
651025
651159
.280"
.630"
.890"
.250"
.340"
.430"
1/4-20 x 3/4 BHSCS
.750"
2.039
651290

Stainless Steel
15
5/16-18
3/4
651253
651289
x
.340"
1.010"
1.370"
.300"
.450"
.640"
SS 5/16-18 x 3/4 BHSCS
.750"
2.912
651292

Stainless Steel
10
1/4-20
3/4
651300
651291
x
.280"
.630"
.890"
.250"
.340"
.430"
SS 1/4-20 x 3/4 BHSCS
.750"
2.184
651418

Bright Zinc
15
M8
20 mm
651347
651289
.340"
1.010"
1.370"
.300"
.450"
.640"
M8 x 20mm BHSCS
.790"
2.110
651422

Bright Zinc
10
M6
20 mm
651661
651291
.280"
.630"
.890"
.250"
.340"
.430"
M6 x 20mm BHSCS
.790"
2.112
