Central Connectors

Connect aluminum profiles at right angles, Through hole must be drilled on one of the profiles to provide access to tightening screw

SELECT PRODUCT VARIATION BELOW TO ADD TO RFQ

Product Variations

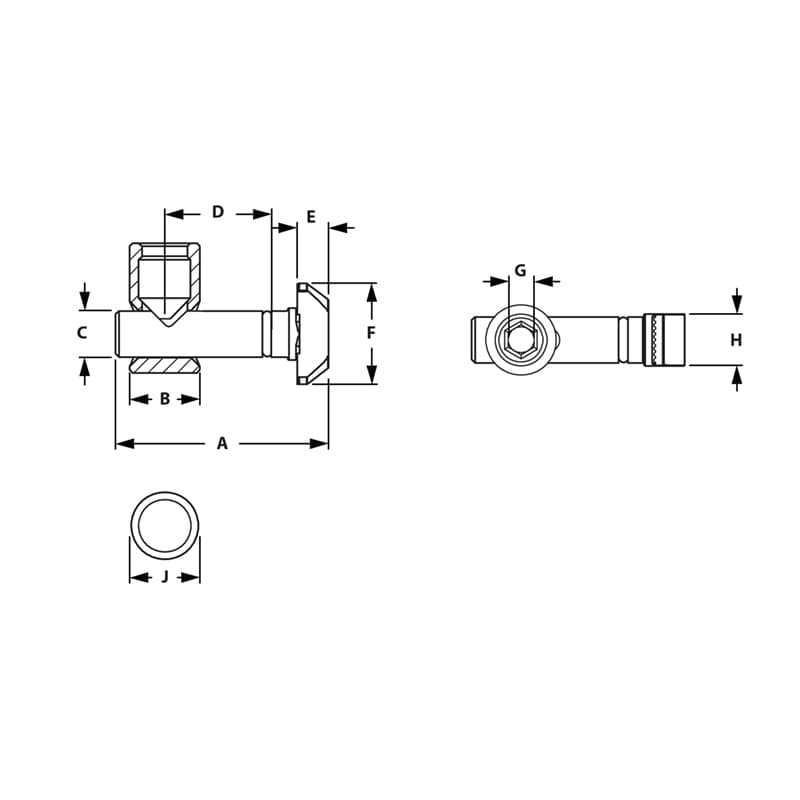

Item #	Finish	Series	A	B	C	D	E	F	G	H	J	List Price	Qty.
659669	Zinc Plated Steel	45	45.5 mm	17 mm	9.8 mm	22.5 mm	5.5 mm	19.6 mm	6 mm	10 mm	17 mm	5.585	Quantity
659730	Zinc Plated Steel	45	45.5 mm	17 mm	9.8 mm	22.5 mm	5.5 mm	19.6 mm	6 mm	10 mm	17 mm	5.585	Quantity
659893	Zinc Plated Steel	30	33 mm	11 mm	7.1 mm	18 mm	4.8 mm	15.5 mm	4 mm	8 mm	11 mm	6.741	Quantity
682994	Zinc Plated Steel	30	33 mm	11 mm	7.1 mm	18 mm	4.8 mm	15.5 mm	4 mm	8 mm	11 mm	6.741	Quantity
