7 HOLE 90° JOINING PLATE

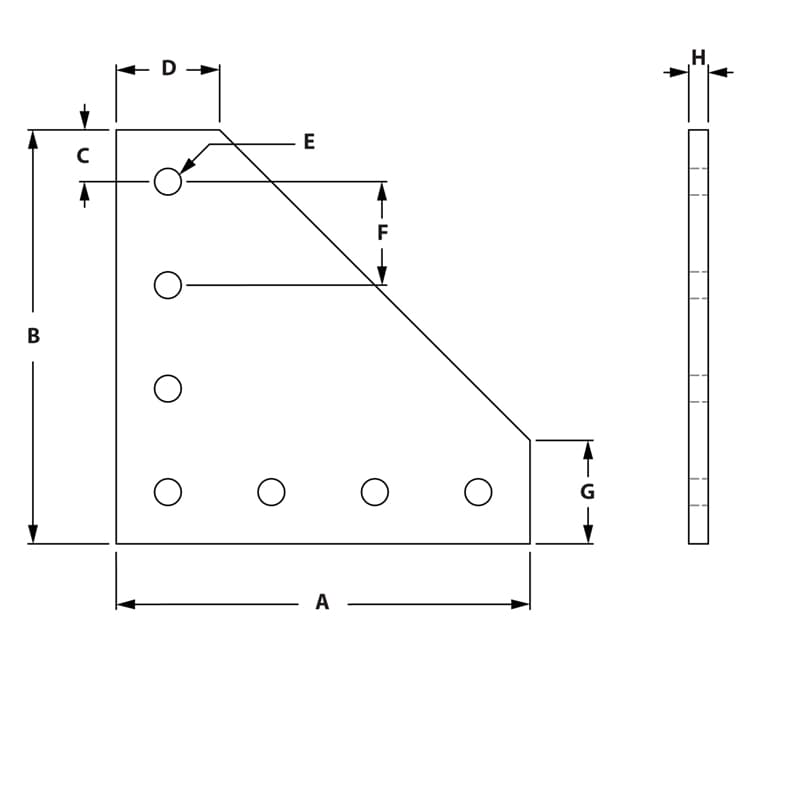

Image of 7 Hole 90 Degree Joining Plate Image of Draw-7 Hole 90 Degree Joining Plate

Anodized aluminum 40S 7 Hole 90 Deg. Joining Plate fastening method connects two extrusion profiles together at a 90-degree connection. This 7 Hole 90 Deg. Joining Plate doesn’t require any machining and engages the 2-degree lock feature for tightening assembly hardware

SELECT PRODUCT VARIATION BELOW TO ADD TO RFQ

Product Variations

Item # Series Finish Recommended Fasteners # 1 A B C D E F G H List Price Qty. Add to RFQ
664079

40
Clear
651506
152.40mm
152.40mm
20.00mm
36.20mm
8.33mm
40.00mm
36.20mm
6.35mm
14.959
