5 HOLE 90° JOINING PLATE

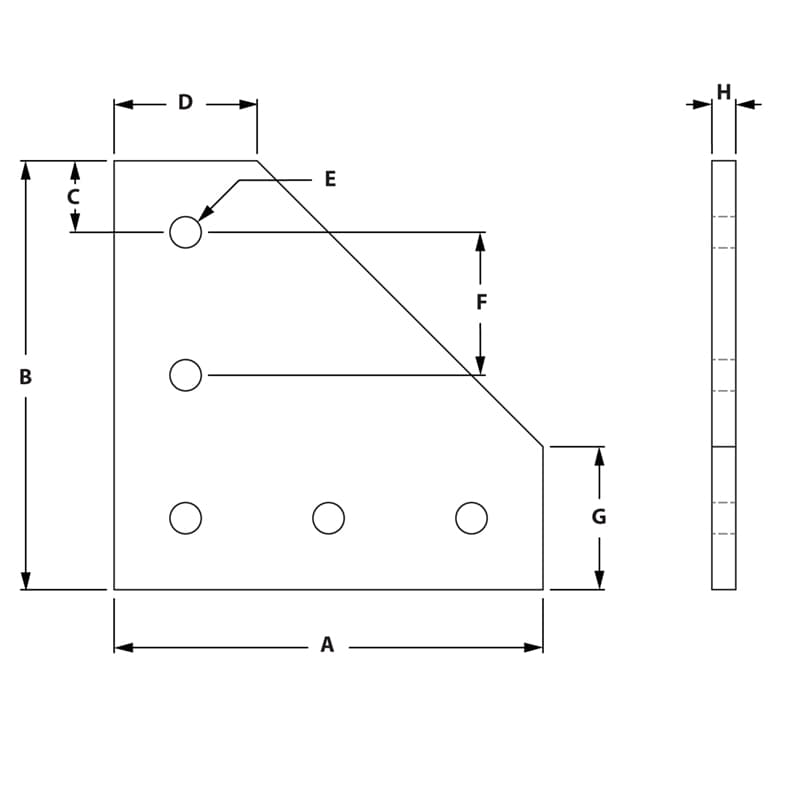

Image of 5 Hole 90 Degree Joining Plate Image of Draw-5 Hole 90 Degree Joining Plate

This 5 hole Joining Plate doesn’t require any machining and can be positioned anywhere along the t-slotted bar. The 5 hole plate engages the 2-degree lock feature for tightening assembly hardware

SELECT PRODUCT VARIATION BELOW TO ADD TO RFQ

Product Variations

Item # Series Finish Recommended Fasteners # 1 A B C D E F G H List Price Qty. Add to RFQ
664029

40
Clear
651506
127.00mm
127.00mm
27.00mm
40.00mm
8.33mm
40.00mm
40.00mm
6.35mm
15.183
