4 HOLE VERTICAL INSIDE CORNER GUSSET

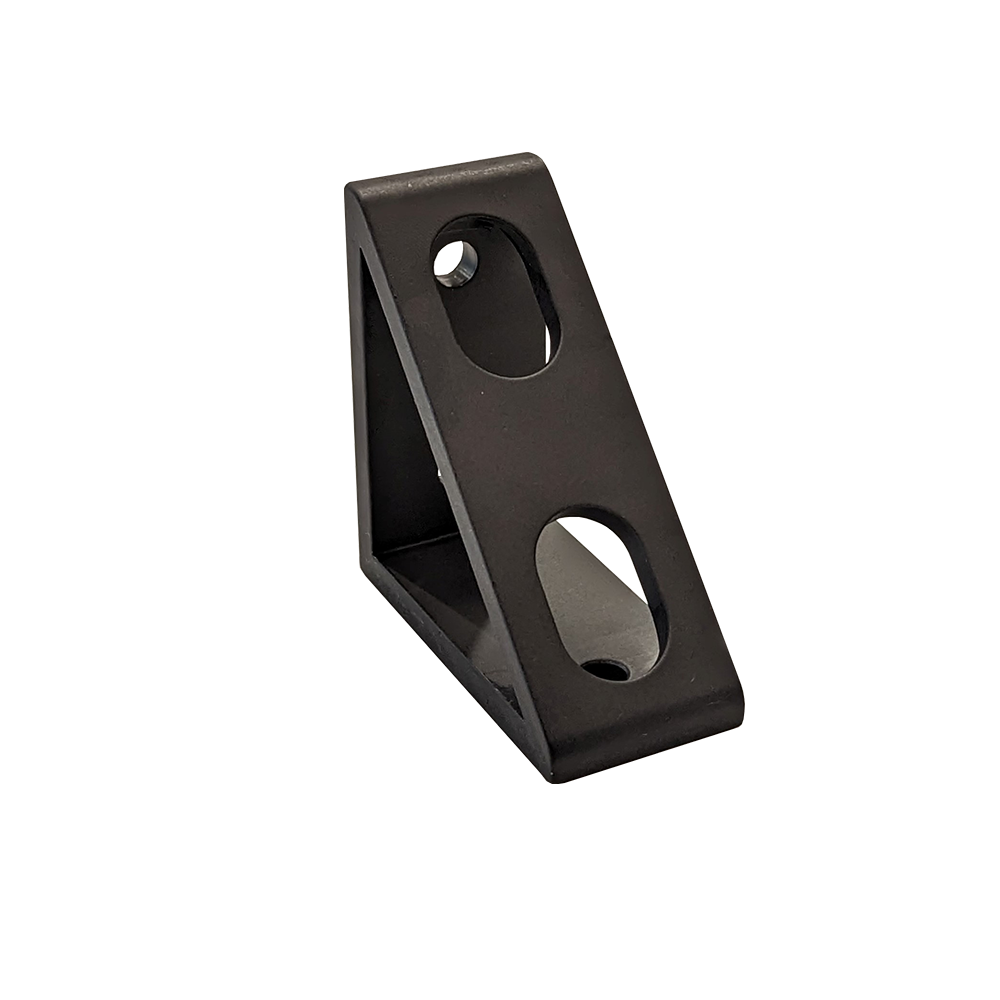

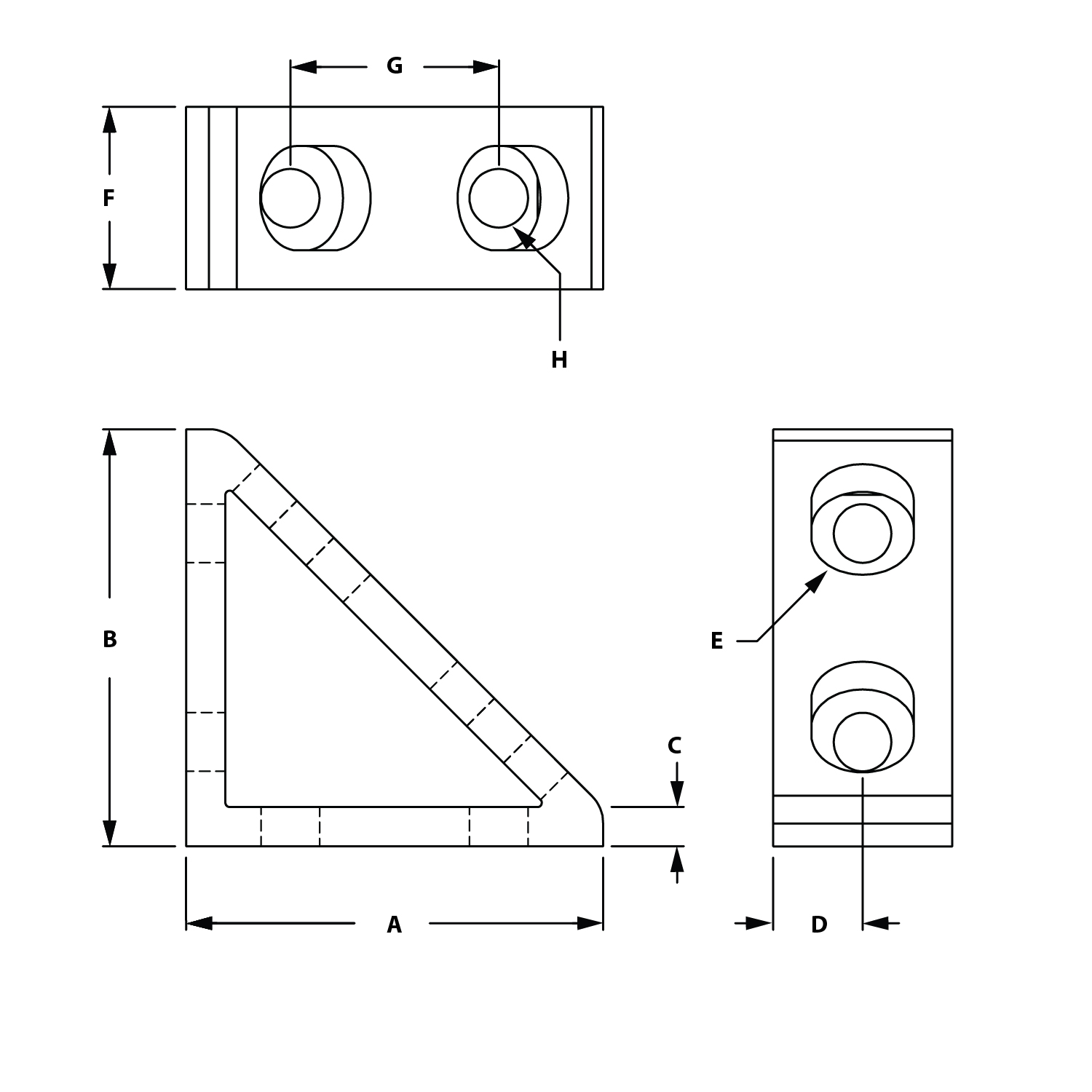

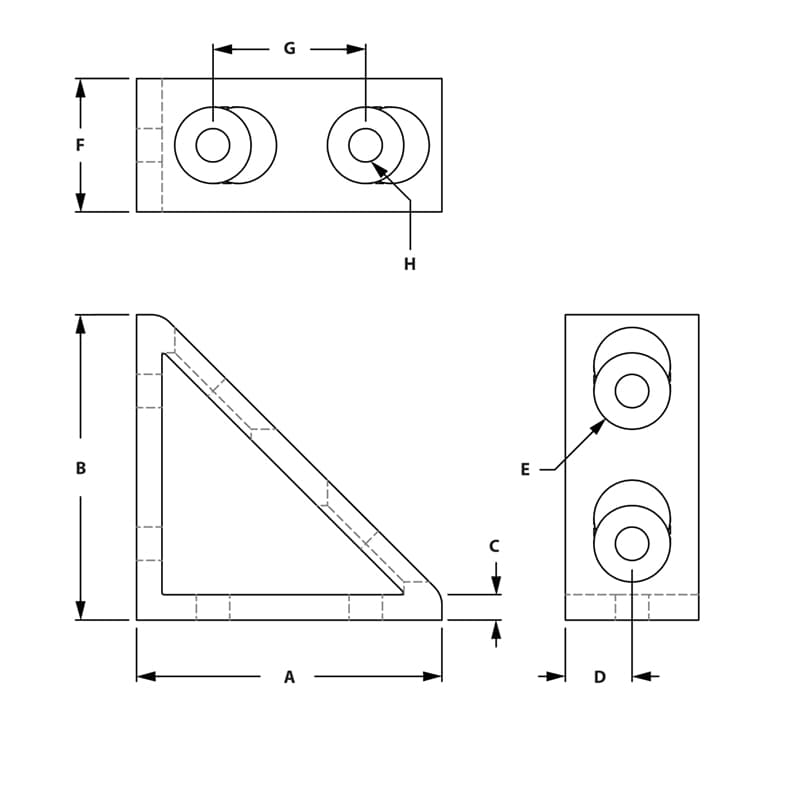

Image of 4 Hole Vertical Inside Corner Gusset Image of Draw-4 Hole Vertical Inside Corner Gusset Image of 4 Hole Vertical Inside Corner Gusset Black

Anodized aluminum 4 hole vertical inside corner gusset fastening method connects two extrusion profiles together at a 90-degree connection. This 4 hole vertical inside corner gusset doesn’t require any machining and engages the 2-degree lock feature for tightening assembly hardware,

SELECT PRODUCT VARIATION BELOW TO ADD TO RFQ

Product Variations

Item # Series Finish A B C D E F G H List Price Qty. Add to RFQ
664002

40
Clear
76.20mm
76.20mm
6.35mm
18.00mm
19.00mm
36.00mm
40.00mm
8.33mm
8.664
664102
40
Black
76.20mm
76.20mm
6.35mm
18.00mm
19.00mm
36.00mm
40.00mm
8.33mm
12.230
