4 HOLE 90° JOINING PLATE

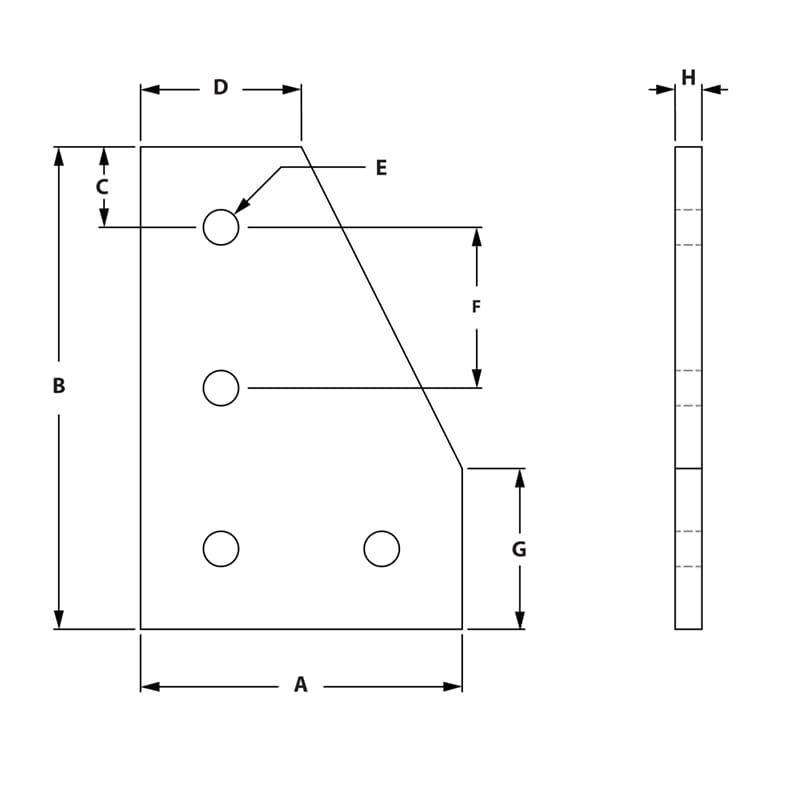

Image of 4 Hole 90 Degree Joining Plate Image of Draw-4 Hole 90 Degree Joining Plate

Anodized aluminum 40S 4 Hole 90 Deg. Joining Plate fastening method connects two extrusion profiles together at a 90-degree connection. This 4 Hole 90 Deg. Joining Plate doesn’t require any machining and engages the 2-degree lock feature for tightening assembly hardware

SELECT PRODUCT VARIATION BELOW TO ADD TO RFQ

Product Variations

Item # Series Finish Recommended Fasteners # 1 A B C D E F G H List Price Qty. Add to RFQ
664077

40
Clear
651506
80.00mm
120.00mm
27.00mm
40.00mm
8.33mm
40.00mm
40.00mm
6.00mm
9.604
