6 HOLE 30° ANGLE JOINING PLATE

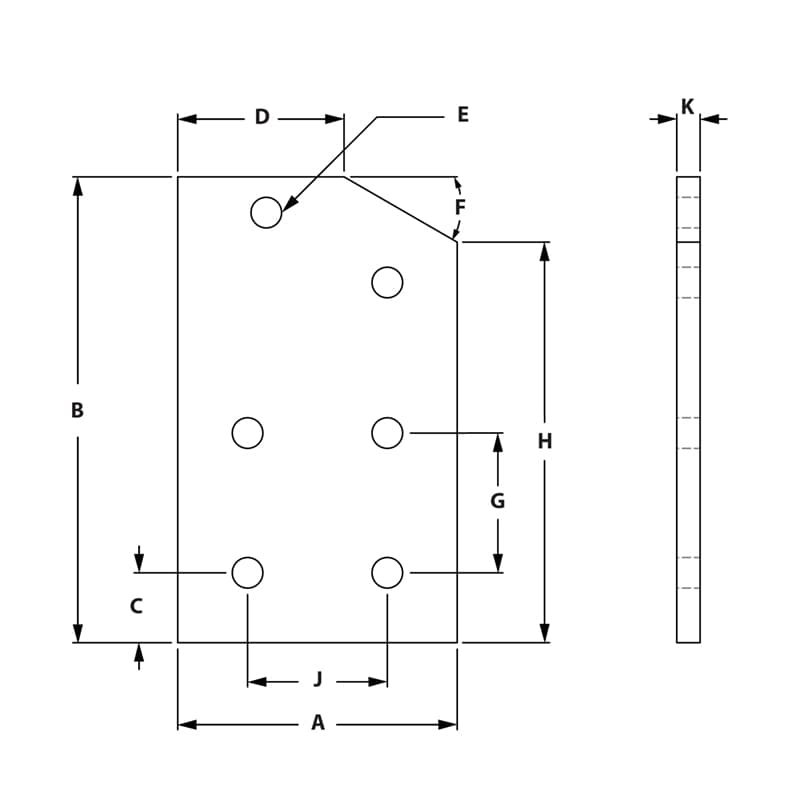

Image of 6 Hole 30 Degree Joining Plate Image of Draw-6 Hole 30 Degree Joining Plate

Anodized aluminum 15S 6 Hole 30 Deg. Angle Joining Plate fastening method connects two extrusion profiles together at a 30-degree connection. This 6 Hole 30 Deg. Angle Joining Plate doesn’t require any machining and engages the 2-degree lock feature for tightening assembly hardware

SELECT PRODUCT VARIATION BELOW TO ADD TO RFQ

Product Variations

Item # Series Finish Recommended Fasteners # 1 A B C D E F G H J K List Price Qty. Add to RFQ
653163

15
Clear
651129
3.000"
5.000"
.750"
1.786"
.328"
30°
1.500"
4.299"
1.500"
.250"
9.830
