5 Hole 90° Joining Plate

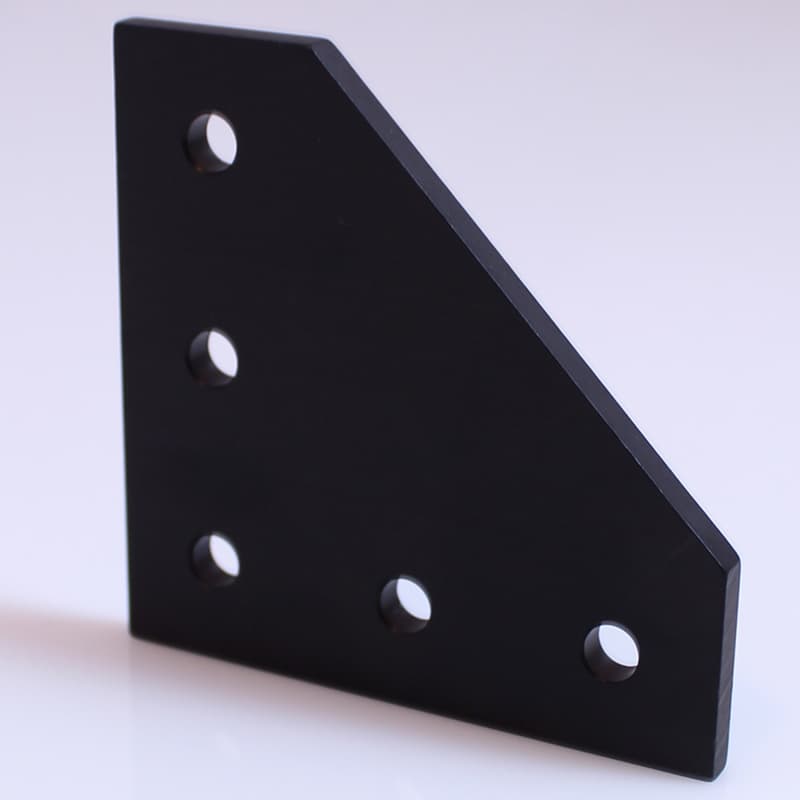

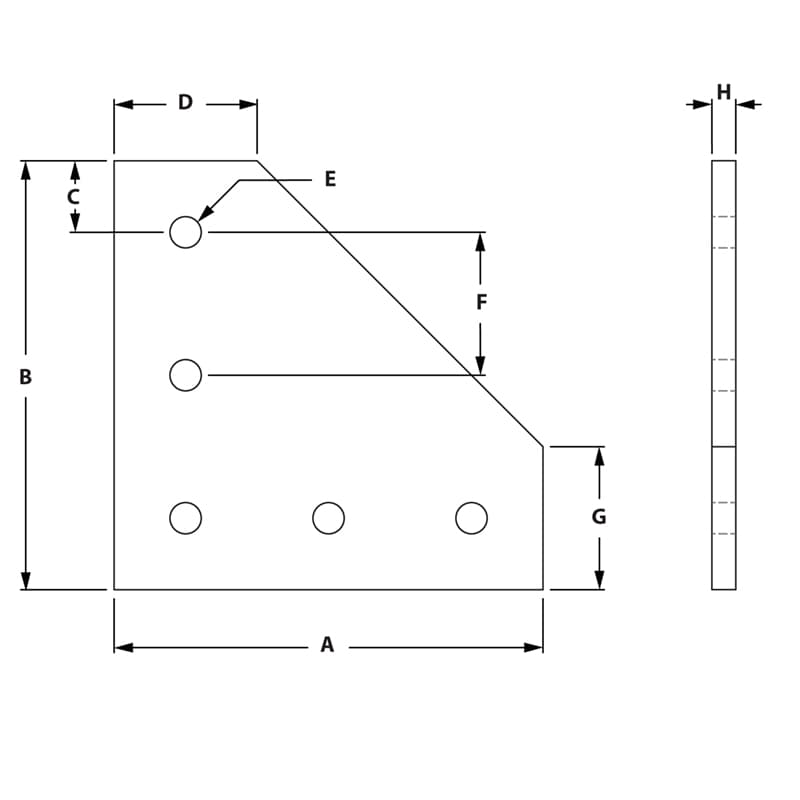

Image of 5 Hole 90 Degree Joining Plate Image of Draw-5 Hole 90 Degree Joining Plate Image of 5 Hole 90 Degree Joining Plate Black

This 5 hole Joining Plate doesn’t require any machining and can be positioned anywhere along the t-slotted bar. The 5 hole plate engages the 2-degree lock feature for tightening assembly hardware

SELECT PRODUCT VARIATION BELOW TO ADD TO RFQ

Product Variations

Item # Series Finish Recommended Fasteners # 1 A B C D E F G H List Price Qty. Add to RFQ
653085

10
Clear
651171
3.000"
3.000"
.500"
1.000"
.257"
1.000"
1.000"
.188"
9.437
653183

15
Clear
651129
4.500"
4.500"
.750"
1.500"
.328"
1.500"
1.500"
.250"
10.616
654085

10
Black
651171
3.000"
3.000"
.500"
1.000"
.257"
1.000"
1.000"
.188"
11.385
654183

15
Black
651129
4.500"
4.500"
.750"
1.500"
.328"
1.500"
1.500"
.250"
11.315
