6 Hole 90° Joining Plate

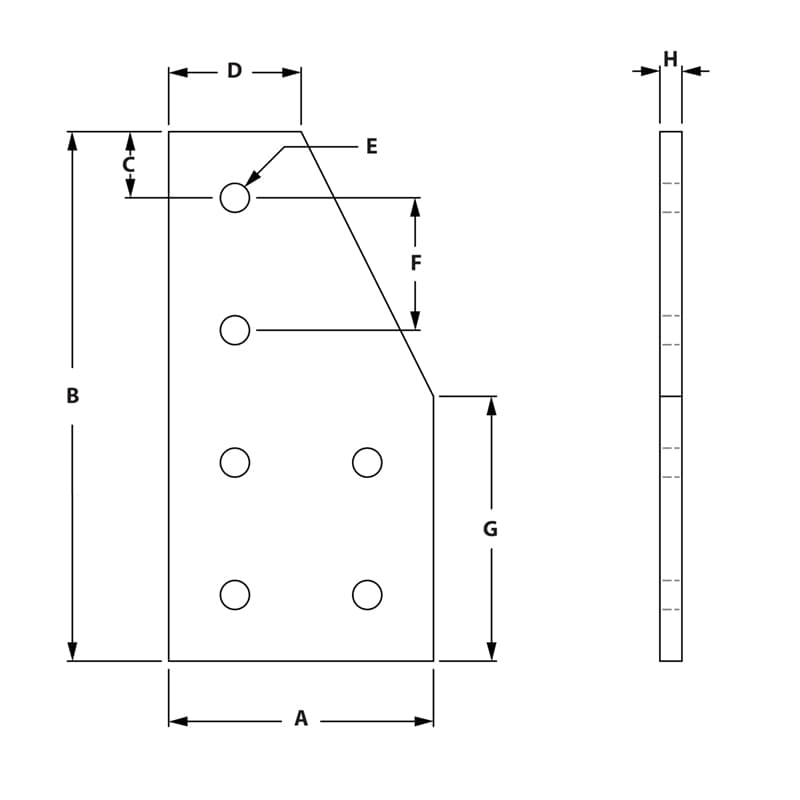

Image of 6 Hole 90 Degree Joining Plate Image of Draw-6 Hole 90 Degree Joining Plate

Anodized aluminum 10S 6 Hole 90 Deg. Joining Plate fastening method connects two extrusion profiles together at a 90-degree connection. This 6 Hole 90 Deg. Joining Plate doesn’t require any machining and engages the 2-degree lock feature for tightening assembly hardware,

SELECT PRODUCT VARIATION BELOW TO ADD TO RFQ

Product Variations

Item # Series Finish Recommended Fasteners # 1 A B C D E F G H List Price Qty. Add to RFQ
653057

10
Clear
651171
2.000"
4.000"
.500"
1.000"
.257"
1.000"
2.000"
.188"
8.811
653153

15
Clear
651129
3.000"
6.000"
.750"
1.500"
.328"
1.500"
3.000"
.250"
13.953
