4 Hole 90° Joining Plate

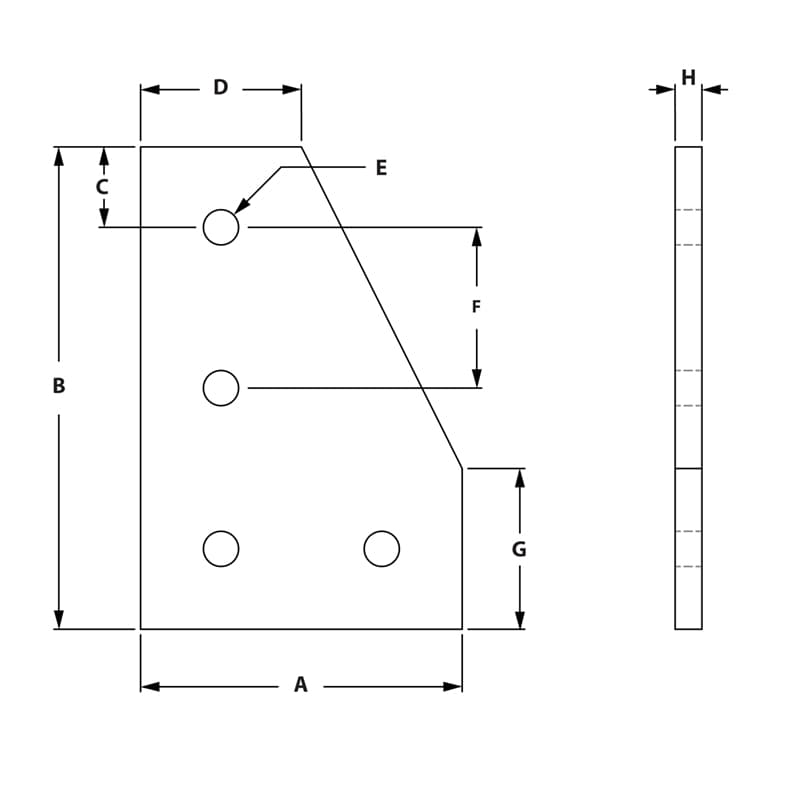

Image of 4 Hole 90 Degree Joining Plate Image of Draw-4 Hole 90 Degree Joining Plate

Anodized aluminum 10 S 4 Hole 90 Deg. Joining Plate fastening method connects two extrusion profiles together at a 90-degree connection. This 10 S 4 Hole 90 Deg. Joining Plate doesn’t require any machining and engages the 2-degree lock feature for tightening assembly hardware

SELECT PRODUCT VARIATION BELOW TO ADD TO RFQ

Product Variations

Item # Series Finish Recommended Fasteners # 1 A B C D E F G H List Price Qty. Add to RFQ
653084

10
Clear
651171
2.000"
3.000"
.500"
1.000"
.257"
1.000"
1.000"
.188"
7.063
653182

15
Clear
651129
3.000"
4.500"
.750"
1.500"
.328"
1.500"
1.500"
.250"
7.718
