2 HOLE CORNER GUSSETS

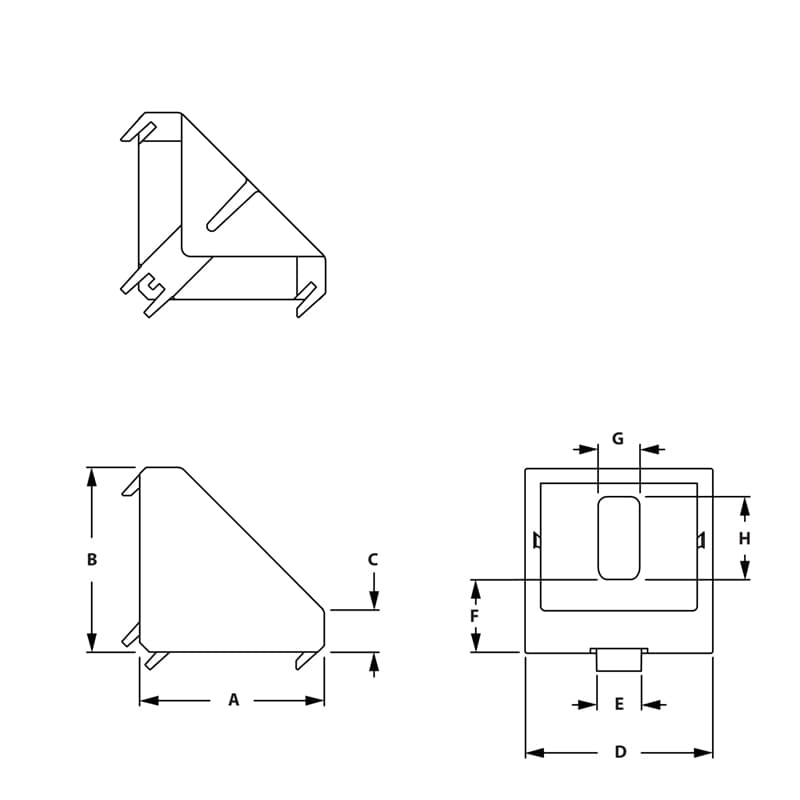

Image of 2 Hole Corner Gusset Image of Draw-2 Hole Corner Gusset

Die-cast anodized aluminum 2 hole corner gusset that doesn’t require any machining and can be positioned anywhere along the t-slotted bar. Creates a 90 Degree connection and provides a strong connection.

SELECT PRODUCT VARIATION BELOW TO ADD TO RFQ

Product Variations

Item # Series Finish Recommended Fasteners # 1 Fastening Hardware Included A B C D E F G H List Price Qty. Add to RFQ
671211

20
Die-Cast
651701
18.00mm
18.00mm
3.00mm
18.00mm
6.00mm
7.00mm
5.20mm
7.00mm
0.962
671213

30
Die-Cast
651702
27.00mm
27.00mm
6.00mm
28.00mm
8.00mm
12.50mm
6.40mm
9.50mm
2.610
671217

45
Die-Cast
651704
41.00mm
41.00mm
9.50mm
42.00mm
10.00mm
16.50mm
9.00mm
18.50mm
3.435
671745

40
Die-Cast
651703
36.00mm
36.00mm
5.50mm
38.00mm
10.00mm
9.00mm
9.00mm
20.50mm
3.435
671635

30
Die-Cast
x
27.00mm
27.00mm
6.00mm
28.00mm
8.00mm
12.50mm
6.40mm
9.50mm
4.648
671218

45
Die-Cast
x
41.00mm
41.00mm
9.50mm
42.00mm
10.00mm
16.50mm
9.00mm
18.50mm
6.595
