BASE PLATE

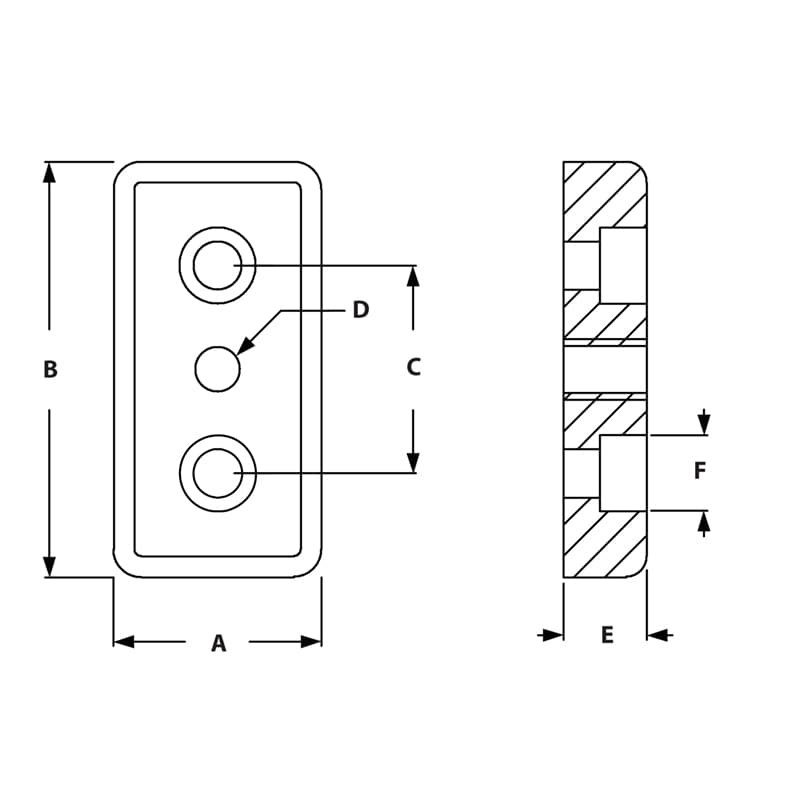

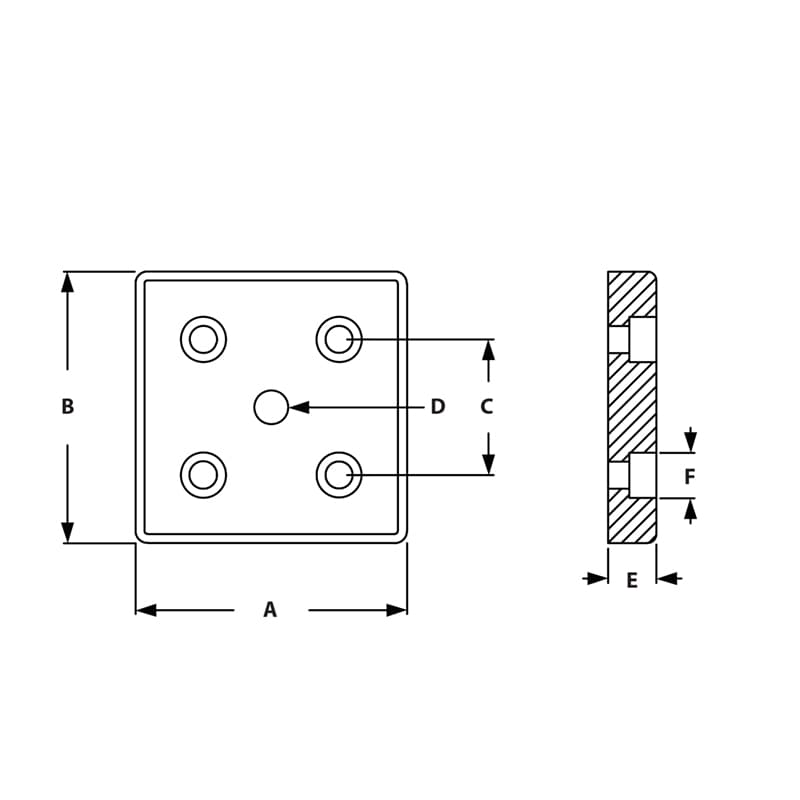

Image of Base Plates Style 1 Image of Draw-Base Plates Style 1 Image of Draw-Base Plates Style 2

To mount leveling feet, rollers, hooks or similar components, Connects to the extrusion slot as well

SELECT PRODUCT VARIATION BELOW TO ADD TO RFQ

Product Variations

Item # Series Style Finish A B C D E F List Price Qty. Add to RFQ
671126

30
1
Die-Cast Zinc
30mm
60mm
30mm
M8
12mm
M8 SHCS
11.870
671128

30
1
Die-Cast Zinc
30mm
60mm
30mm
M10
12mm
M8 SHCS
11.870
671130

30
1
Die-Cast Zinc
30mm
60mm
30mm
M12
12mm
M8 SHCS
11.870
671132

30
1
Die-Cast Zinc
30mm
60mm
30mm
M14
12mm
M8 SHCS
11.870
671144

45
1
Die-Cast Zinc
45mm
90mm
45mm
M10
16mm
M12 SHCS
19.373
671146

45
1
Die-Cast Zinc
45mm
90mm
45mm
M12
16mm
M12 SHCS
16.133
671148

45
1
Die-Cast Zinc
45mm
90mm
45mm
M14
16mm
M12 SHCS
17.806
671150

45
1
Die-Cast Zinc
45mm
90mm
45mm
M16
16mm
M12 SHCS
19.373
671152

45
1
Die-Cast Zinc
45mm
90mm
45mm
M20
16mm
M12 SHCS
17.806
671196

45
2
Die-Cast Zinc
90mm
90mm
45mm
M10
16mm
M12 SHCS
22.257
671198

45
2
Die-Cast Zinc
90mm
90mm
45mm
M12
16mm
M12 SHCS
24.210
671200

45
2
Die-Cast Zinc
90mm
90mm
45mm
M14
16mm
M12 SHCS
24.210
671202

45
2
Die-Cast Zinc
90mm
90mm
45mm
M16
16mm
M12 SHCS
24.210
671204

45
2
Die-Cast Zinc
90mm
90mm
45mm
M20
16mm
M12 SHCS
24.210
